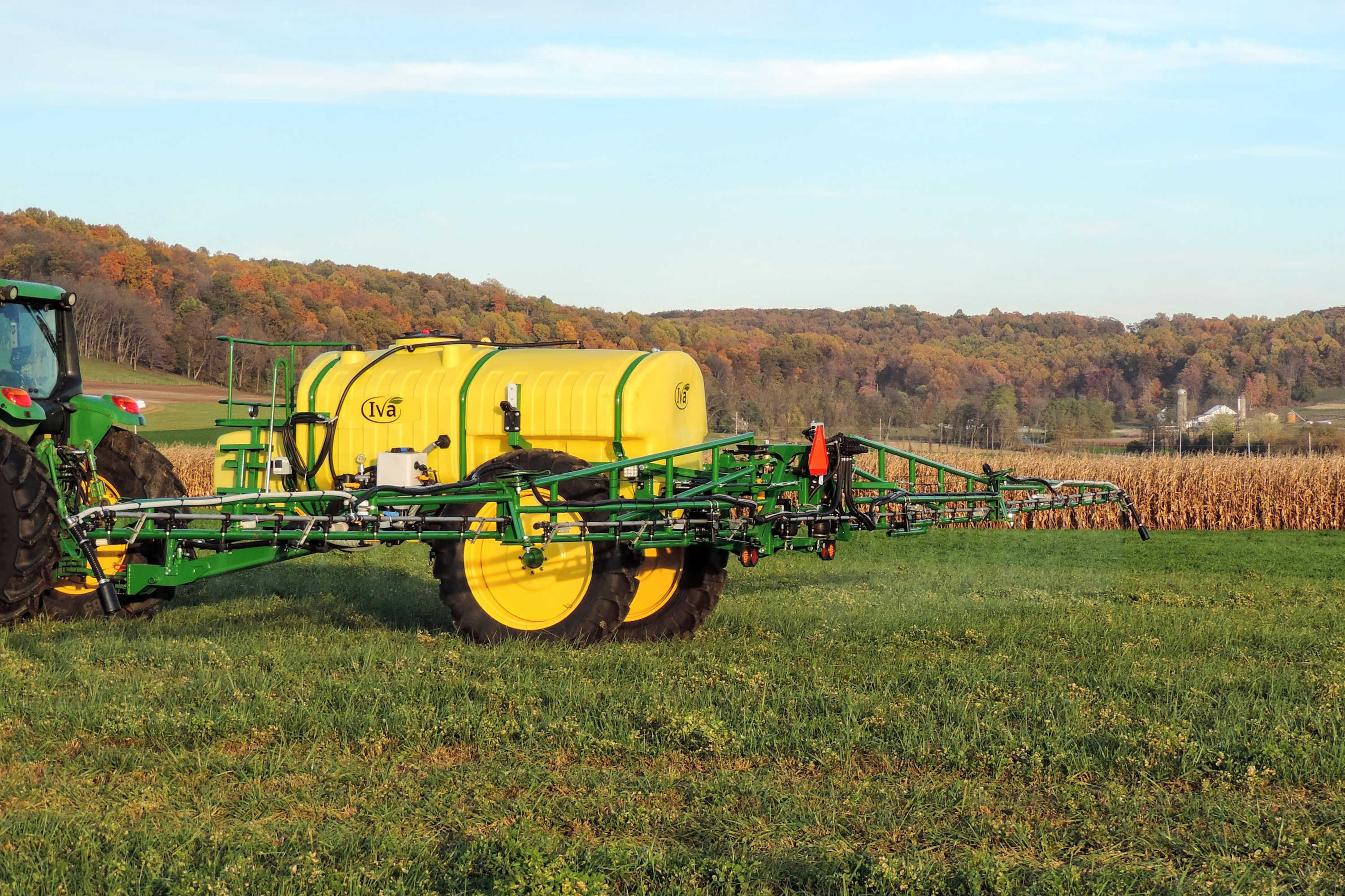

1000 gallon Field Sprayer with 60' AirRide Booms
1000 gallon Trailer Field Sprayer with 60' AirRide Booms
1000 gallon Crop Sprayer with eductor tank
1000 gallon Pull Type Sprayer with 60' AirRide Booms
1000 gallon Ag Sprayer with with 60' AirRide Booms
rear view of 1000 gallon Field Sprayer with 60' AirRide Booms
1000 gallon Field Sprayer with with 60' AirRide Booms

1000 gallon Trailer Field Sprayer

F1000A Series

1000 gal. trailer field sprayer with adjustable hitch. Axle spacing is adjustable from 66-90".

340/85R-38 tall tires standard.

Heavy-duty fully welded frame is coated with automotive primer and paint.

AirRide hydraulic booms in 45', 60' and 70' widths. AIXR Teejet air-induction tips with SS wet boom..

Optional 10-gal. foam marker, 100-gal. rinse system, and induction tank.

See Pricing

Options

5 gal. Induction Tank with Lift

5 gallon Induction Tank is a simple and clean way to mix powder and liquid chemicals to the tank. The lift has gas cylinders to tuck it neatly into storage.

100 Gallon Rinse System

100 gallon rinse system carries enough fresh waster to flush the sprayer and extra water to clean strainers.

Power Wash

The Power Wash System includes 25' of powered by a 12V pump suppling clean water from the rinse tank and a jug rinse in the induction tank.

Richway Foam Marker - 10 gal.

Richway foam markers work great for booms from 30-70' wide. 10 gallon capacity has approximately 6 hours of foam.

Road Lights

Road lights are essencial for safe road transport at dark and on busy highways.

Pumps

Ace Belt-drive PTO Pump - 150 Series

Ace 150 series belt-drive PTO centrifugal pump is an excellent pump for large sprayers. 120 PSI max, 110 GPM.

Ace Hyd-drive Centrifugal Pump - 150 Series

Ace 150 series hyd-drive centrifugal pump is an excellent pump for large sprayers. 120 PSI max, 110 GPM.

Controls

EC500 Electric Control

EC500 Electric control works with 3 or 5 section 430 Teejet ball valves.

RateKing Auto Rate Control

RateKing automatic rate control works with 3 or 5 section 430 Teejet ball valves.

Choose the right sprayer to protect your crops.

All Iva sprayers are built to last. Heavy-duty welded frames and booms provide many season's of reliable use. 1-year warranty.

Base Model

  • 1000 gal. Trailer Frame
  • 60' AirRide Boom
  • AIXR nozzles at 20" spacing
  • Ace 150 PTO Centrifugal Pump
  • EC500  5-section Electric Control
$36,292

#4864

Standard Model

  • 1000 gal. Trailer Frame
  • 60' AirRide Boom
  • AIXR nozzles at 20" spacing
  • Ace 150 PTO Centrifugal Pump
  • EC500  5-section Electric Control
  • 100 gal. Total Rinse System
  • 10 gal. Richway Foam Marker
  • 2" Quick Fill
  • Road Lights
$41,752

#4865

Loaded Model

  • 1000 gal. Trailer Frame
  • 60' AirRide Boom
  • AIXR nozzles at 20/30" spacing
  • Ace 150 PTO Centrifugal Pump
  • RateKing Auto Rate Control
  • Induction Tank
  • 100 gal. Total Rinse System
  • 10 gal. Richway Foam Marker
  • 2" Quick Fill
  • Field and Road Lights
$45,852

#4866

Contact Sales for Availability and Shipping
