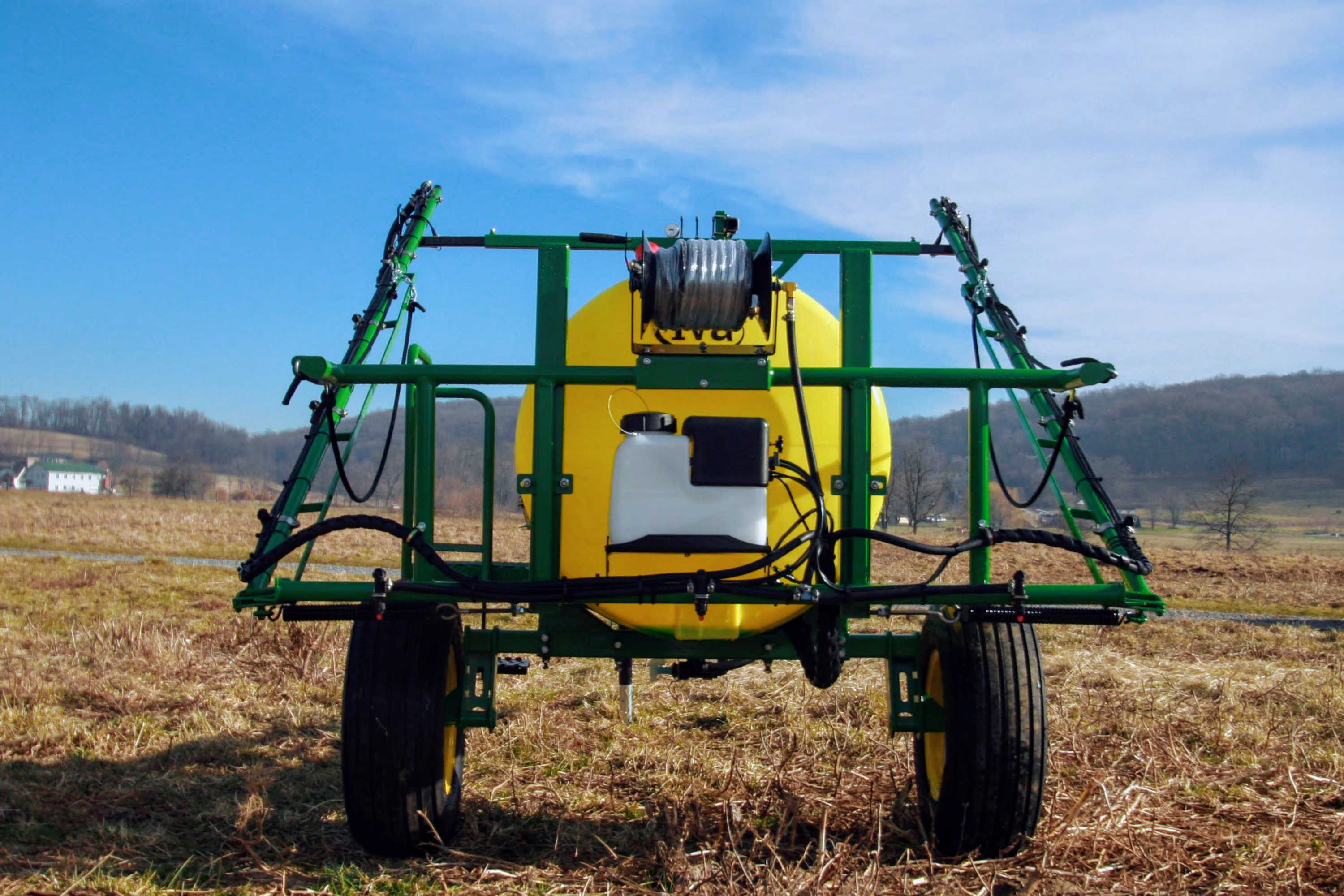

300 gallon Trailer Field Sprayer
F300M series
300 gal. trailer field sprayer with adjustable hitch. Axle spacing is adjustable from 60-80".
11L impliment tires standard. 9.5-25 tall tires are optional.
Heavy-duty fully welded frame is coated with automotive primer and paint.
Manual-fold booms in 30' and 40' widths. AIXR Teejet air-induction tips with no-drip nozzle bodies.
Optional 5-gal. foam marker and 15-gal. rinse tank.
Options
15 gal. Rinse Tank-trailer
15 gal. rinse tank holds fresh water to rinse clogged strainers and has a hand wash valve. When the spray job is complete rinse the entire sprayer in the field.
Iva Foam Marker - 5gal.
Iva foam markers work great for booms from 20-40' wide. 5 gallon capacity has approximately 2.5 hours of foam time.
Pumps
Hypro 7700C Cast 7-roller Pump
Hypro 7700C cast 7-roller pump is an econamical roller pump for entry level sprayers. 100 PSI max, 13GPM
Hypro 7700XL Silver Series 7-roller Pump
Hypro 7700XL Silver Series 7-roller pump is an excellent roller pump for entry level sprayers. 100 PSI max, 13GPM
Ace Hyd-drive Centrifugal Pump - 75 Series
Ace 75 series hyd-drive centrifugal pump is an excellent pump for medium size sprayers. 120 PSI max, 110 GPM.
Ace Belt-drive PTO Pump - 150 Series
Ace 150 series belt-drive PTO centrifugal pump is an excellent pump for large sprayers. 120 PSI max, 110 GPM.
Controls
Manual Control
Manual control are simple reliable way of controlling boom sections and pressure. Master valve to turn off all section at once. Available from 1 to 5 sections.
Choose the right sprayer to protect your crops.
All Iva sprayers are built to last. Heavy-duty welded frames and booms provide many season's of reliable use. 1-year warranty.
Base Model
- 300 gal. Trailer Frame
- 30' manual-fold boom
- AIXR nozzle at 20" spacing
- 7-roller Hypro pump,cast iron
- 3-section manual control
$6,806
#4879
Standard Model
- 300 gal. Trailer Frame
- 30' Manual-fold boom
- AIXR nozzles at 20" Spacing
- 7-roller Hypro pump, Silver Series
- Remcor 3-section Electric Control
- 5 gal. Iva Foam Marker
$8,516
#4880
Loaded Model
- 300 gal. Trailer Frame -9.5-24 Tractor Tire
- 30' Manual-fold boom
- AIXR nozzles at 20/30" Spacing
- 7-roller Hypro pump, Silver Series
- Remcor 3-section Electric Control
- 5 gal. Iva Foam Marker
- 15 gal. Rinse Tank
$10,066
#4881
